BFL CNC Cutting and Forming Tools/Carbide Inserts CCGT060202-LH
Product Description
Product Overview
Milling Data Recommended(For reference only,please use it according to your producing environment)
Fit work piece | Condition | (HB) | BU810 | BPU109 | |||||
VC(m/min) | ap(mm) | fz(mm/t) | VC(m/min) | ap(mm) | fz(mm/t) | ||||
Reflectal | Unhardening | 60 | 300-3000 |
0.5-5.0 |
0.1-0.35 | 300-3000 |
0.5-5.0 |
0.05-0.35 | |
100 | 100-2500 | 100-2500 | |||||||
Birmasil | Si≤12% | Unhardening | 75 | 100-2000 | 100-2000 | ||||
Hardening | 90 | 100-1800 | 100-1800 | ||||||
Si≥12% | high temperature | 130 | 100-1000 | 100-1000 | |||||

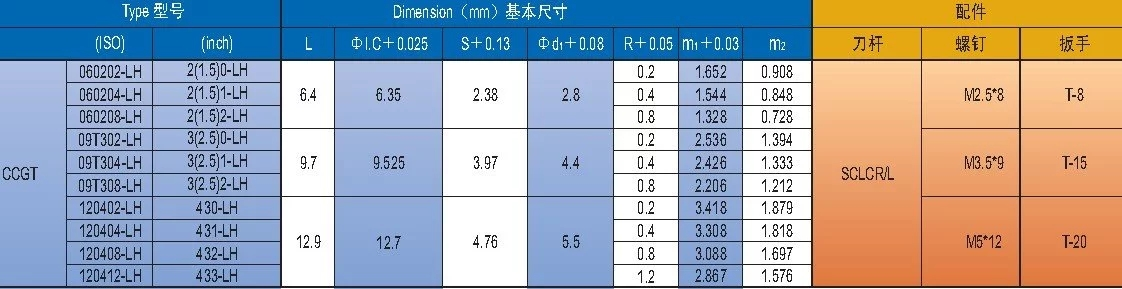

Specification

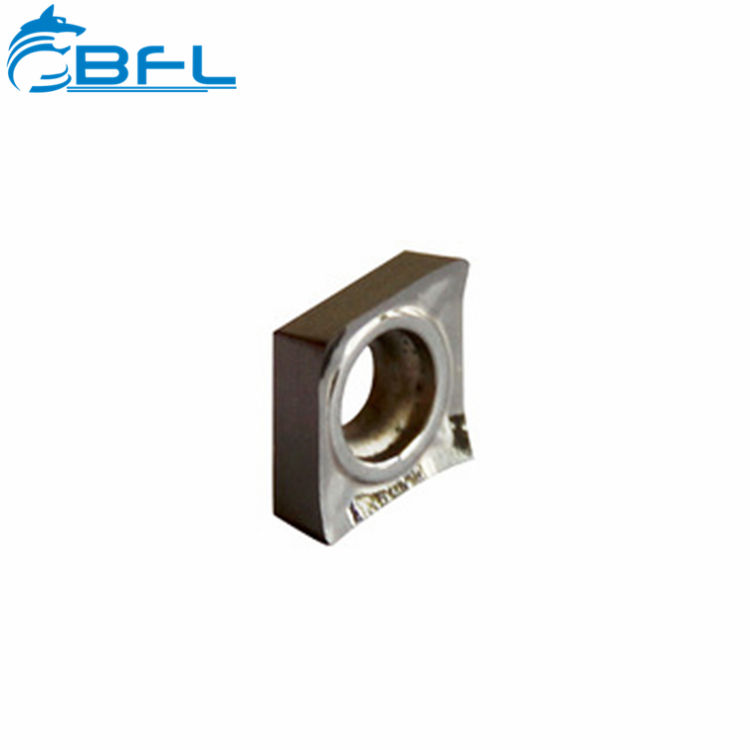

Product Show
Company Information
Changzhou North Carbide Tool Co., Ltd is a high-tech enterprise which specializes in the manufacturing and processing of tools and mechanical components and parts. For over a decade, the Company has been embracing itself with a philosophy of “Customer Foremost” and the entrepreneurship of sincerity, honesty, pioneering and forging ahead. The Company aims to win the trust and praise of a large majority of customers as well as a vast market by virtue of its sophisticated technologies, premium qualities, reasonable prices, complete categories and exquisite packages, first-class services.
The Company has powerful technological strength, together with massive imported high-precision manufacturing, inspection and testing equipment. The Company gives priority to introduction of the advanced manufacturing and monitoring machines home and abroad, including but not limited to CNC cutter grinding machine tools from RPL-LOMTIC in Switzerland and WALTER in Germany, as well as cutter checking and inspection instruments from EOUER in Germany, all tremendously enhances the manufacturing capacity of the company, quality of products and competitiveness in market expansion.
The scope of manufacture of the Company extends from carbide drill bits, milling cutters, reamers, plug gauges, alloy cutters, carbide saws with coarse teeth, helical end mills, brazed shank tools, indexable tools, machining center tools, to tool handles, etc, with comprehensive applications in the mechanical processing, of automobiles, moulds, and plastics, and dedications to the provision of premium cutters for modern industries. The Company is fully recognized by massive customers with its proven qualities and excellent services.
FAQ
1. Are you manufacturer? Do you have factory?
We are professional manufacturer,have more than 15 years experience in this field.
2. Is free shipping possible?
We don't offer free shipping service,but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies,can offer you the best price of shipping cost.
3. Can you send products to our Forwarder in China?
Yes,if you have Forwarder in China,we will glad to send products to him/her.
4.Can you produce Special carbide Tools ?
Yes We can. From 2013 year. Our factory main market change from standard end mills to special tools. Special tools according to your drawing and sample.
