PRODUCT CODE | R Angle(mm) | TIP DIAMETER(mm) | OUTSIDE DIAMETER(mm) | OVERALL LENGTH(mm) | SHANK DIAMETER(mm) |
2/3/4 CRC–04027050 | 0.5 | 1.5 | 2.7 | 50 | 4 |
2/3/4 CRC–04032050 | 0.75 | 3.2 | |||
2/3/4 CRC–04037050 | 1 | 3.7 | |||
2/3/4 CRC–06042050 | 1.25 | 4.2 | 6 | ||
2/3/4 CRC–06047050 | 1.5 | 4.7 | |||
2/3/4 CRC–06052050 | 1.75 | 5.2 | |||
2/3/4 CRC–06057050 | 2 | 5.7 | |||
2/3/4 CRC–08067050 | 2.5 | 6.7 | 8 | ||
2/3/4 CRC–08077050 | 3 | 7.7 | |||
2/3/4 CRC–12102060 | 4 | 10.2 | 60 | 12 | |
2/3/4 CRC–16132075 | 5 | 3 | 13.2 | 75 | 16 |
2/3/4 CRC–16152075 | 6 | 15.2 | |||
HRC Available | Description | ||||

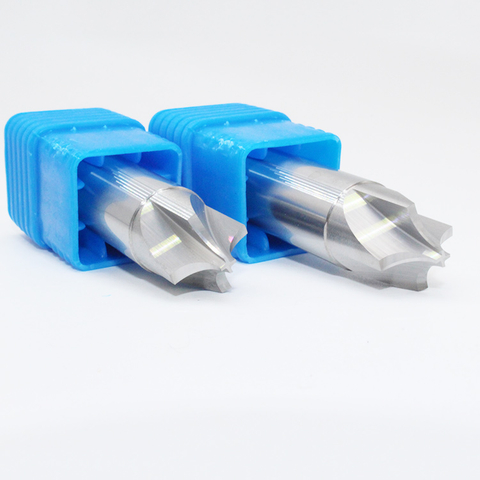

45/55/60/65 | BFL Tungsten Carbide 2/3/4 Flutes corner rounding cutters Suitable for mould steel, cast iron,Tiatanium alloy,copper,and aluminum processing.mainly for the processing of through hole, thread hole,and location hole of workpiece. | ||||
